Create cleaner VFX in Fusion Studio - Mustache Composite
Fusion Studio Mustache Composite VFX
Project files and source assets can be linked below the post, along with the Pexels footage and still image used in the tutorial.
Download Final Comp file here https://www.fixedinpost.com/tutorial-library/v/clean-comps-fusion
Download Footage used https://www.pexels.com/video/close-up-of-man-s-mouth-6259130/
Download Mustache Still https://www.pexels.com/photo/portrait-of-a-man-with-stylish-mustache-and-earrings-35069299/
In this Fusion tutorial, we are going to pull a mustache from a still image, apply it to a moving face, surface track it into place, and then refine the composite with color correction, blur, sharpening, contact shadows, and grain.
But the bigger lesson is not just how to stick a mustache on someone’s face.
The real goal is learning how to build the effect in a way that keeps your footage sharp, avoids unnecessary filtering hits, and gives you a cleaner, more flexible node flow.
A lot of Fusion composites technically “work,” but they quietly damage the plate along the way. This setup keeps the original footage as untouched as possible while isolating the actual effect work.
Let’s get into it.

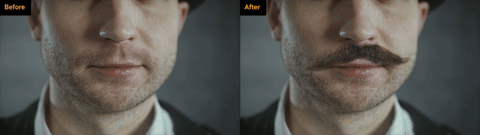

Before and After

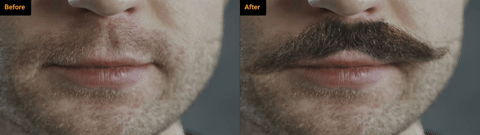

Before and After Scaled up
Why Node Order Matters in Fusion
Before building the mustache composite, it helps to understand a concept that can quietly affect image quality: concatenation.
In Fusion, certain transform operations can be mathematically combined when they stay connected in an uninterrupted chain. For example, if you scale footage way down with one Transform node and then scale it back up with another Transform node, Fusion can process that chain as a single combined operation.
That means the image does not necessarily get destroyed just because you used multiple Transform nodes.
The important part is that the chain stays intact.
If you place a non-transform node between those Transform nodes — even something like a Color Corrector that does not visibly change anything — Fusion has to process and flatten the image at that point. Then the next Transform works on that newly processed version.
That can introduce a visible filtering hit.
In practical terms:
Keep related Transform nodes together.
Avoid breaking transform chains with unrelated nodes.
Group similar operations logically.
Be intentional about when the image gets processed.
Do not force the full plate through unnecessary filtering if only one small area needs the effect.
This becomes especially important when working with stabilization, re-warping, and surface tracking.
The Goal of the Composite
For this shot, we have two main assets:
A video plate of a man smiling.
A high-resolution still image containing the mustache we want to extract.
The final goal is to:
Track the movement of the face.
Stabilize the mouth area.
Extract the mustache from the still image.
Composite it onto the stabilized face.
Reapply the original motion.
Isolate only the mustache result.
Merge that isolated result back over the original plate.
That last part is the key.
Instead of stabilizing and re-warping the entire plate as the final output, we only want to use the tracking process to move the mustache correctly. The original footage should stay as clean as possible.
Why This Workflow Produces a Cleaner Composite
The obvious part of the tutorial is adding a mustache.
The more valuable part is learning how to think through the node flow.
A quick-and-dirty version of this effect would stabilize the face, add the mustache, re-warp the whole image, and call it done. That can work, but it softens the entire plate.
A cleaner version asks:
What actually needs to be processed?
What can stay untouched?
Where are we accidentally filtering the image?
Can we isolate the effect instead of reprocessing the full frame?
Are we keeping related operations grouped together?
That mindset applies to much more than this mustache shot.
Any time you are doing screen replacements, patches, beauty work, tattoos, scars, makeup, facial additions, or tracked elements, this same approach can help you keep the composite sharper and more controllable.
Final Thoughts
This Fusion setup shows how to combine surface tracking, matte extraction, stabilization, re-warping, and compositing polish into one clean workflow.
The mustache effect itself is fun, but the bigger lesson is about protecting the original image.
Keep your transforms together when possible. Avoid breaking concatenation unnecessarily. Do not reprocess the entire plate when only one small area needs work. Isolate your effect, then merge it back over the original footage.
That is how you get a composite that tracks well, blends naturally, and keeps the footage sharp.
And one final production note: if your source clip is an MP4, consider converting it to an image sequence before working in Fusion. Image sequences are more reliable and responsive for compositing work than compressed video files.
